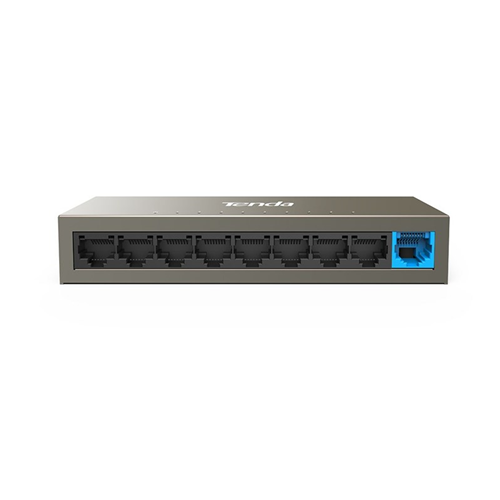

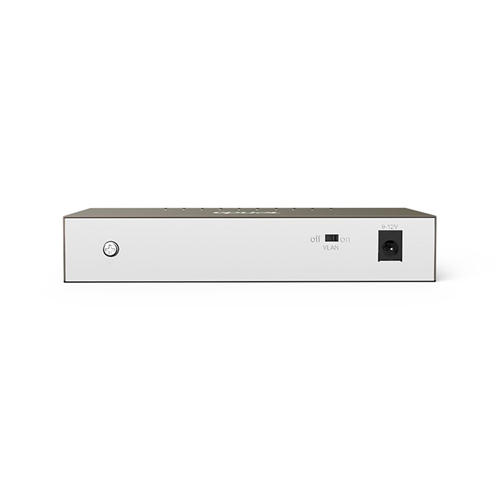

HUB SWITCH DI RETE TENDA TEF1109D 10/100MBPS 9 PORTE ETHERNET

TEF1109D is a 9-port fast Ethernet switch developed by Tenda, offering 9 10/100 Mbps RJ45 ports. Equipped with large packet buffer, it also ensures smooth streaming even when 8 HD IP cameras are working simultaneously. You can enable port VLAN mode of the switch to protect your LAN network from broadcast storm and prevent loss of monitoring images. In addition, the switch offers 6 kV lightning protection for its uplink port. In a word, TEF1109D is a perfect choice for small and medium-sized IP surveillance projects and enterprises to have network.


Standard&Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Port
9 * 10/100 Mbps RJ45 port

Transmission Media
Recommended: CAT5/5e UTP or better

Forwarding Rate
10 Mbps: 14880 pps
100 Mbps: 148800 pps

Power
Input: 100 - 240 V AC, 50/60 Hz
Output: DC 9 - 12 V

Lightning Protection
6 kV for uplink port

Dimension
140 mm * 66.5 mm * 25.3 mm(L * W * H)

LED indicator
1 * Power
9 * Link/Act

Switching Capacity
1.8 Gbps

MAC Address Table
2 K

Power Consumption
Max: 5 W

Protocol
CDMA/CD

Store & Forward
Supported

MAC Address Learning
Auto learning & auto aging

VLAN
Supported. Port 9 is an uplink port and ports 1 to 8 are isolated from each other.

Temperature
Operating temperature: (0 - 40)°C
Storage temperature: (-40 - 70)°C

Humidity
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) % RH, non-condensing

Certification
CCC, CE, FCC, RoHS

Related Products
TEF1109DT
8FE+1GE Desktop Switch

Operation System
Windows 8 32/64 bit
Windows 7 32/64 bit
Windows XP 32/64 bit
Linux
MAC OS

Package Content
1 * 9-Port 10/100M Ethernet Desktop Switch
1 * Power adapter
1 * Quick installation guide
