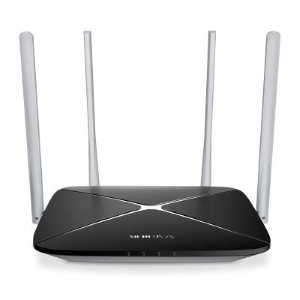

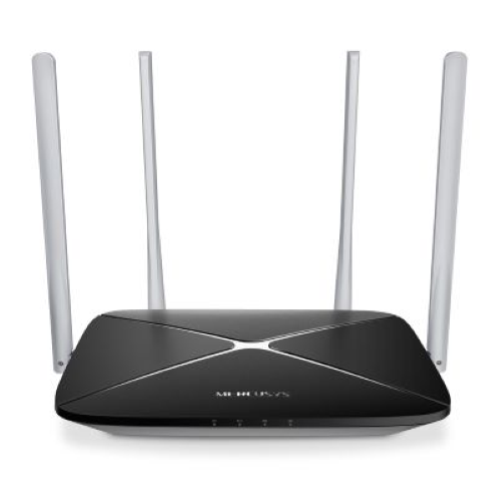

ROUTER WIFI MERCUSYS AC12 AC1200 DUALBAND 4 ANTENNE

Descrizione

Mercusys AC12
Router Wireless Dual Band AC1200

Supporta standard wireless 802.11ac dalle alte performance
Wi-Fi Dual Band fino a 1200Mbps, perfetto per gaming online e streaming video
4 antenne esterne per una copertura wireless estesa
Rete Ospiti - crea una rete Wi-Fi secondaria per i tuoi ospiti separandola da quella principale per mantenere la tua privacy.
Installazione semplice - guida web intuitiva per configurare il Router in pochi istanti



Wireless

Wireless Standards

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4 - 2.5GHz, 5.15 - 5.25GHz

Signal Rate

300Mbps at 2.4GHz, 867Mbps at 5GHz

Reception Sensitivity

5GHz
• 11a 6M: -92dBm
• 11a 54M: -75dBm
• 11ac 20M MCS8: -70dBm
• 11ac 40M MCS9: -64dBm
• 11ac 80M MCS9: -60dBm

2.4GHz
• 11g 6M: -95dBm
• 11g 54M: -77dBm
• 11n 20M MCS7: -74dBm
• 11n 40M MCS7: -71dBm

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics





Software

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control
Local Management
Remote Management

DHCP

Server

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Guest Network

2.4GHz Guest Network, 5GHz Guest Network





Hardware

Dimensioni (W X D X H)

222 x 140 x 32 mm

Button

WPS/Reset Button

External Power Supply

9V/0.85A

Tipologia di Antenna

4 * 5dBi

Ethernet Ports

3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port





Other

Package Contents

• AC1200 Wireless Dual Band Router (AC12)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide

Environment

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
